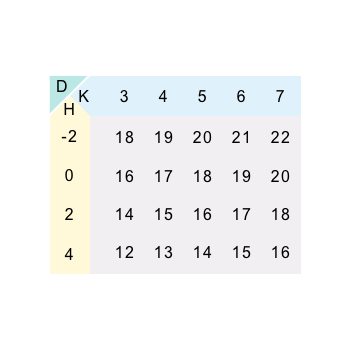

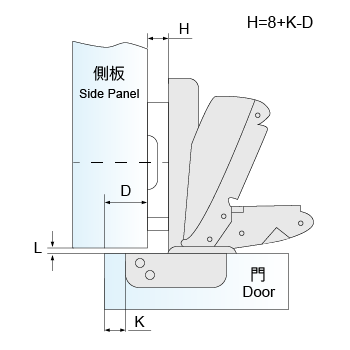

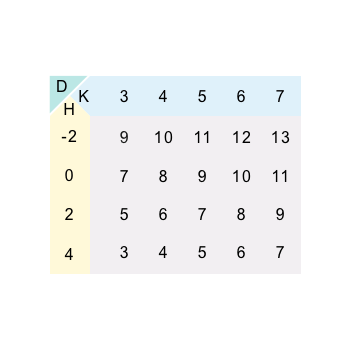

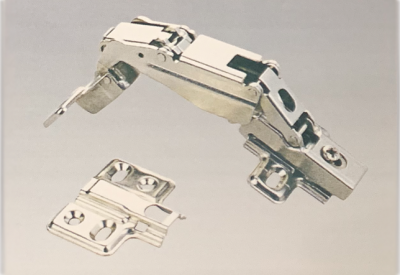

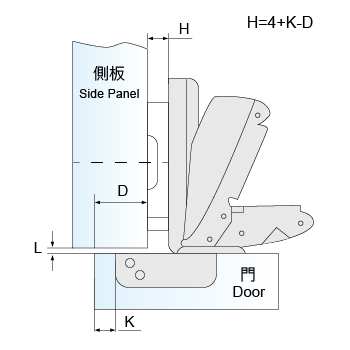

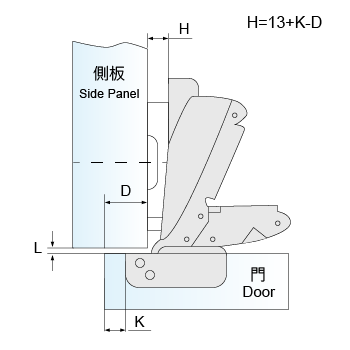

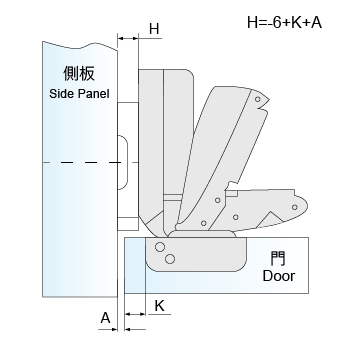

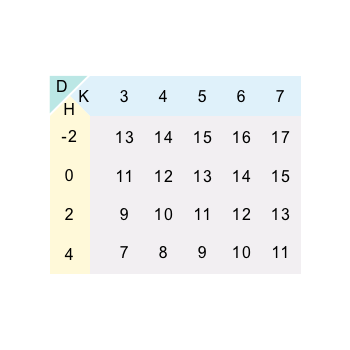

Clip-On Steel Cup – C20wpadmin2019-05-09T13:32:49+08:00 Project Description Concealed Hinges Clip-On Series – C20 Opening Degree: 165° Thickness of hinge cup: 11.3 mm Diameter of hinge cup: 35 mm Dimension of door (k): 3-7 mm Range of door thickness: 14-26 mm Hinge Cup Types Screws & Dowels Options Product Specification Full Overlay C=0Full Overlay C=5Half Overlay C=9Inserted C=17Full Overlay C=0Full Overlay C=5Half Overlay C=9Inserted C=17 Accessories
