Project Description

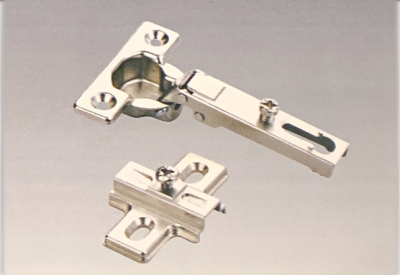

Concealed Hinges Common Type Series – C26
- Opening Degree: 95°
- Thickness of hinge cup: 9 mm
- Diameter of hinge cup: 26 mm

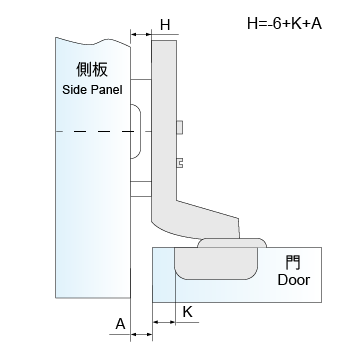

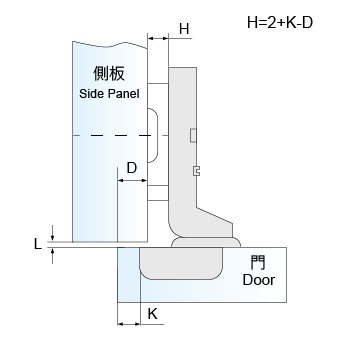

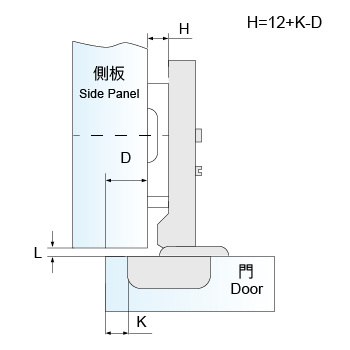

- Dimension of door (k): 3-5 mm
- Range of door thickness: 12-22 mm
Hinge Cup Types
Screws & Dowels Options

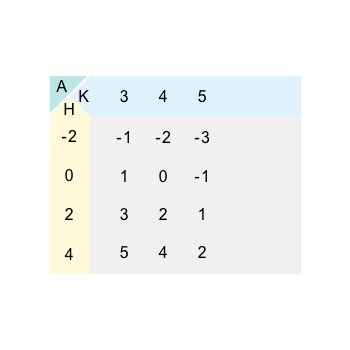

Product Specification
