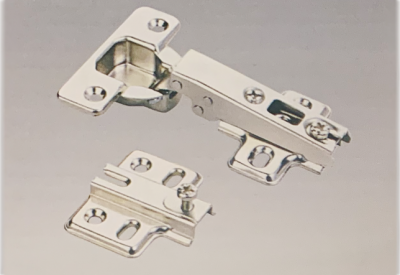

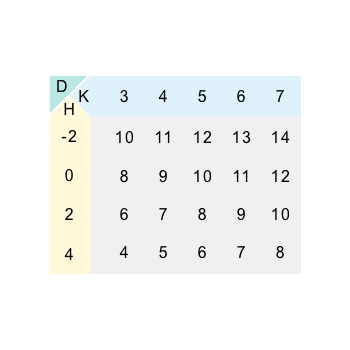

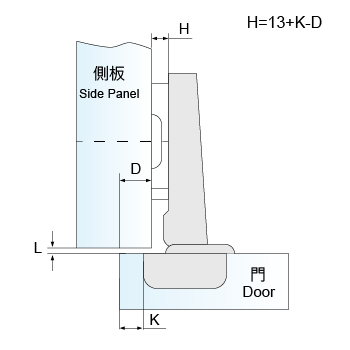

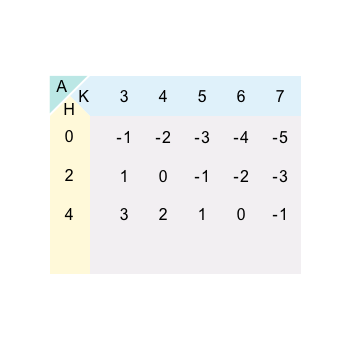

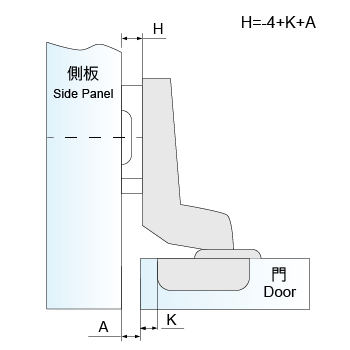

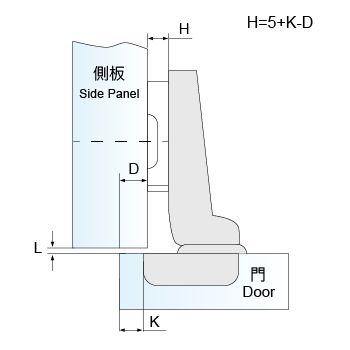

Slide-On – C03wpadmin2019-05-09T13:19:00+08:00 Project Description Concealed Hinges Slide-On Series – C03 Opening Degree: 110° Thickness of hinge cup: 11.3 mm Diameter of hinge cup: 35 mm Dimension of door (k): 3-7 mm Range of door thickness: 14-26 mm Hinge Cup Types Screws & Dowels Options Product Specification Full Overlay C=0Half Overlay C=8Inserted C=17Full Overlay C=0Half Overlay C=8 Inserted C=17 Accessories
