Project Description

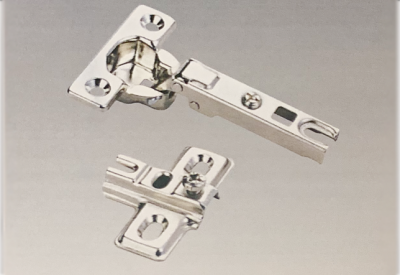

Concealed Hinges Slide-On Series – C06
- Opening Degree: 95°
- Thickness of hinge cup: 9.6 mm
- Diameter of hinge cup: 26 mm

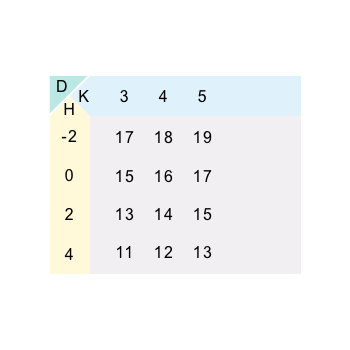

- Dimension of door (k): 3-5 mm
- Range for door thickness: 12-22 mm
Hinge Cup Types
Screws & Dowels Options

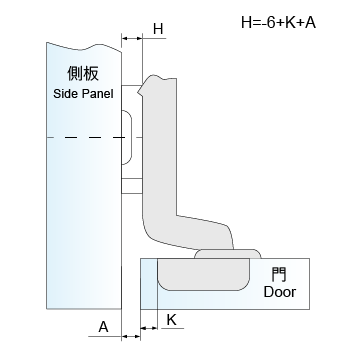

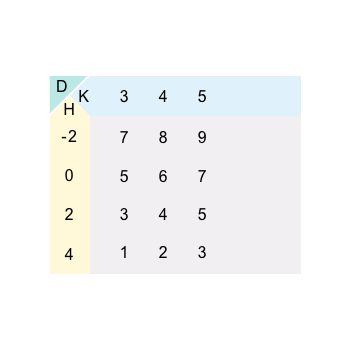

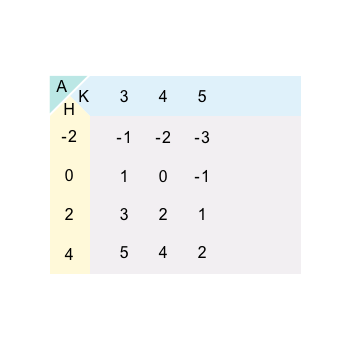

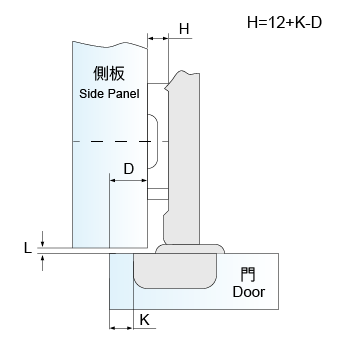

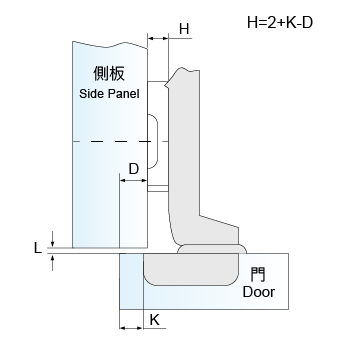

Product Specification
