Project Description

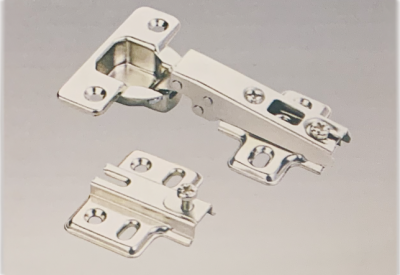

Concealed Hinges Slide-On Series (Two Way) – C01
- Opening Degree: 105°
- Thickness of hinge cup: 11.3 mm
- Diameter of hinge cup: 35 mm
- Dimension of door (k): 3-6 mm
- Range of door thickness: 14-26 mm

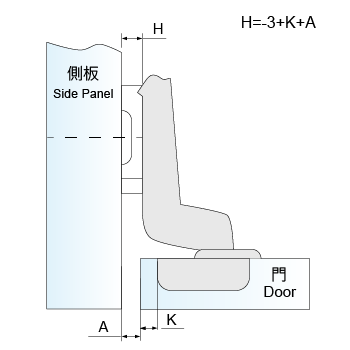

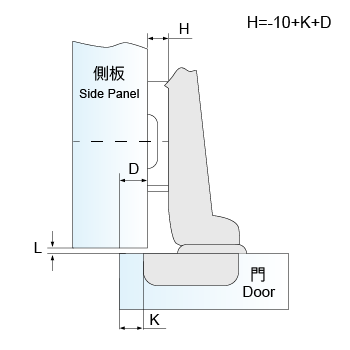

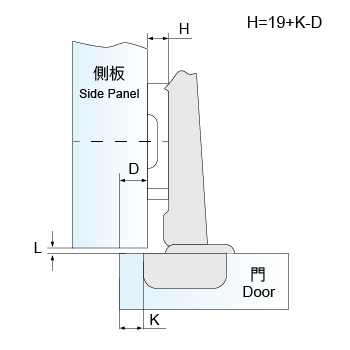

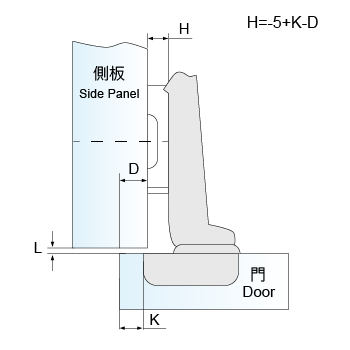

Hinge Cup Types

Screws & Dowels Options

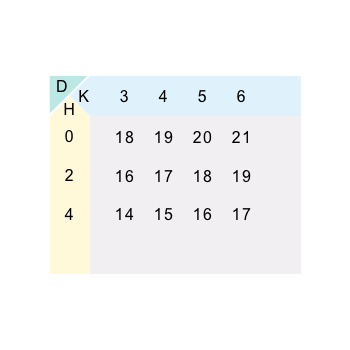

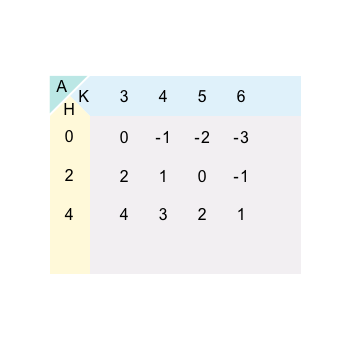

Product Specification
