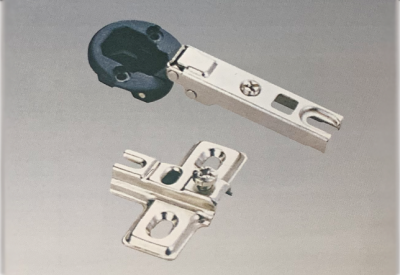

Concealed Hinges Slide-On Glass Series – C17

• Opening Degree: 95°
• Thickness of hinge cup: 9.6 mm
• Diameter of hinge cup: 26 mm

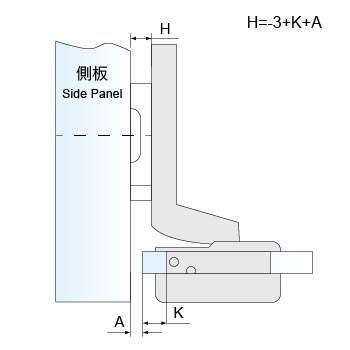

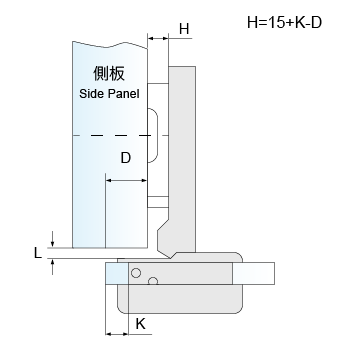

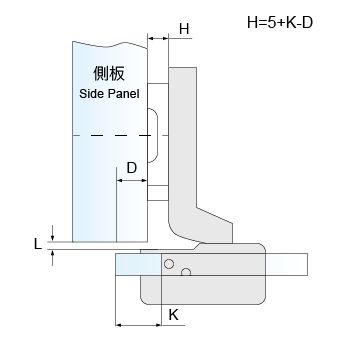

• Dimension of door (k): 3-6 mm
• Range of glass door thickness: 4-6 mm
