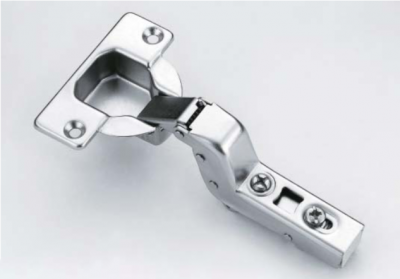

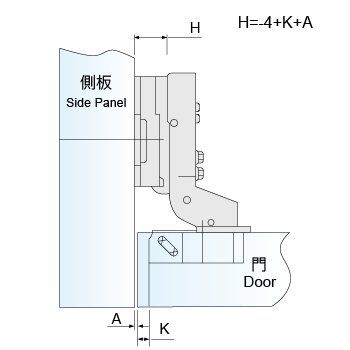

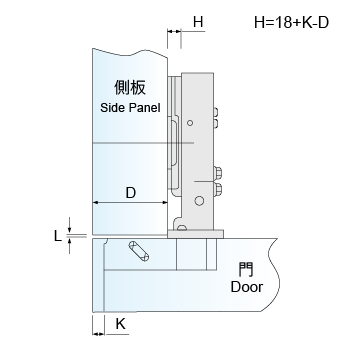

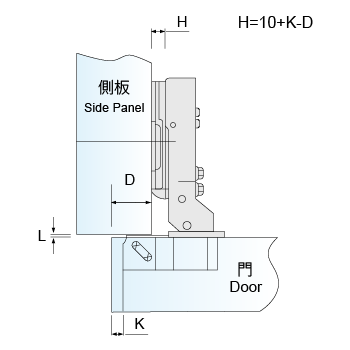

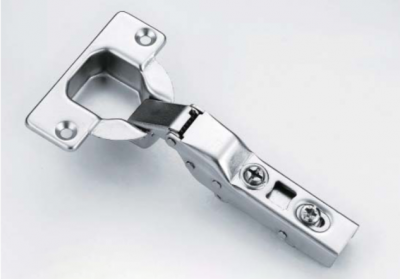

Clip-On 40mmwpadmin2019-05-09T06:49:00+08:00 Project Description Soft Close Damping Hinges – 40mm Opening Degree: 95° Thickness of hinge cup: 13.5 mm Diameter of hinge cup: 40 mm Dimension of door (k): 3-15 mm Range of door thickness: 18-30 mm Hinge Cup Types Screws & Dowels Options Product Specification Full Overlay C=0Half Overlay C=9Inserted C=22Full Overlay C=0Half Overlay C=9Inserted C=22 Accessories
