Project Description

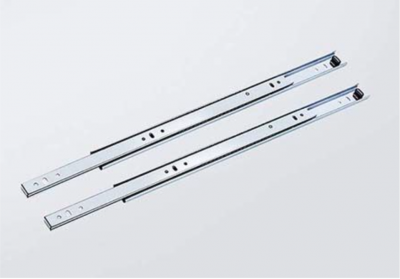

Ball Bearing Slide – SH27120A
- Specification: 3/4 extension
- Slide Width: 10mm
- Load Rating: 15kg per pair
- Material: work hardened cold rolled steel
- Finish: electro-zinc plated with clear, yellow, or black chromate
- Applications: shallow desk drawers, pencil drawers, pullout trays, and bedroom/dining room/kitchen cabinets
Product Specification
| Item No. | Length (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | L1 (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|
| SH2710A-200 | 200 | 64 | 142 | 64 | 115 | 200 | |||
| SH2710A-250 | 250 | 64 | 192 | 64 | 160 | 155 | 250 | ||
| SH2710A-300 | 300 | 96 | 224 | 128 | 224 | 197 | 300 | ||
| SH2710A-350 | 350 | 100 | 285.5 | 128 | 224 | 230 | 350 | ||
| SH2710A-400 | 400 | 146 | 338 | 224 | 320 | 281 | 400 | ||
| SH2710A-450 | 450 | 164 | 388 | 256 | 352 | 315 | 450 | ||
| SH2710A-500 | 500 | 192 | 288 | 434 | 128 | 288; | 384 | 353 | 500 |
| SH2710A-550 | 550 | 192 | 320 | 484 | 160 | 288 | 434 | 395 | 550 |
| SH2710A-600 | 600 | 192 | 356 | 520 | 224 | 384 | 480 | 433 | 600 |
