Project Description

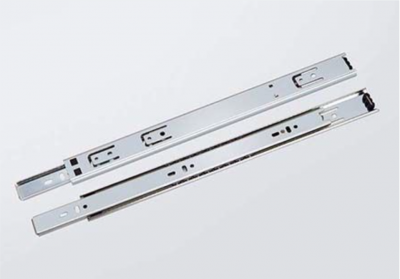

Ball Bearing Slide – SH3510A
- Specification: 3/4 extension

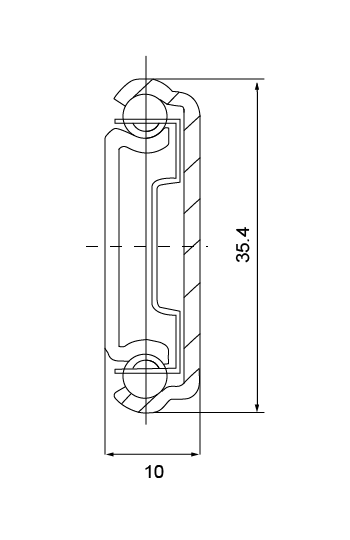

- Slide Width: 35.4mm
- Load Rating: 25kg per pair
- Material: work hardened cold rolled steel
- Finish: electro-zinc plated with clear, yellow, or black chromate
- Application: entertainment and kitchen cabinets, concealed door storage cabinet
Product Specification
| Item No. | Length (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | H (mm) | L1 (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SH3510A-200 | 205 | 96 | 64 | 204 | 205 | ||||||
| SH3510A-250 | 254 | 64 | 96 | 96 | 255 | 254 | |||||
| SH3510A-300 | 305 | 64 | 160 | 96 | 305 | 305 | |||||
| SH3510A-350 | 355 | 64 | 192 | 128 | 128 | 355 | 355 | ||||
| SH3510A-400 | 406 | 64 | 128 | 224 | 160 | 160 | 406 | 406 | |||
| SH3510A-450 | 457 | 64 | 160 | 288 | 160 | 192 | 457 | 457 | |||
| SH3510A-500 | 508 | 64 | 160 | 256 | 352 | 192 | 224 | 508 | 508 | ||
| SH3510A-550 | 559 | 64 | 160 | 288 | 416 | 224 | 224 | 559 | 559 | ||
| SH3510A-600 | 610 | 64 | 128 | 256 | 352 | 488 | 224 | 256 | 610 | 610 | |
| SH3510A-650 | 650 | 64 | 128 | 256 | 352 | 480 | 256 | 256 | 650 | 650 | |
| SH3510A-700 | 711 | 64 | 128 | 352 | 480 | 576 | 224 | 384 | 711 | 711 | |
| SH3510A-750 | 750 | 64 | 128 | 256 | 384 | 512 | 224 | 448 | 608 | 750 | 750 |
