Project Description

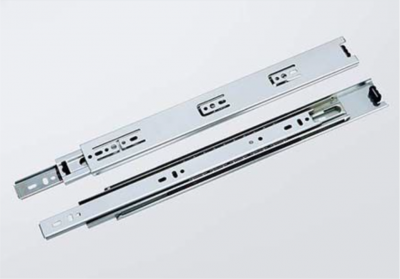

Ball Bearing Slide – SH4513
- Specification: full-extension

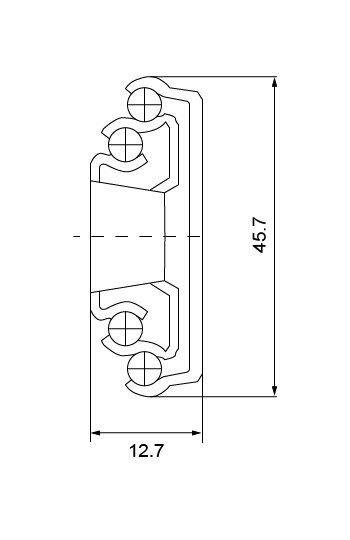

- Slide Width: 45.7mm
- Load Rating: 45kgs per pair at 18″ slide length
- Material: work hardened cold rolled steel
- Finish: electro-zinc plated with clear, yellow, or black chromate
- Application: commercial and residential desk drawer, various institutional contact applications where full-extension is required
- Features: low profile, drawer disconnect with trigger release, hold-in-detent and non-handed
Product Specification
| Item No. | Length (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SH4513-250 | 250 | 128 | 64 | 250 | 271 | |||||
| SH4513-300 | 300 | 128 | 224 | 128 | 300 | 307 | ||||
| SH4513-350 | 350 | 128 | 224 | 128 | 350 | 369 | ||||
| SH4513-400 | 400 | 128 | 224 | 320 | 128 | 400 | 420 | |||
| SH4513-450 | 450 | 128 | 224 | 352 | 128 | 320 | 450 | 467 | ||
| SH4513-500 | 500 | 128 | 224 | 352 | 416 | 128 | 192 | 352 | 500 | 518 |
| SH4513-550 | 550 | 128 | 224 | 352 | 448 | 128 | 192 | 384 | 550 | 544 |
| SH4513-600 | 600 | 128 | 224 | 352 | 480 | 128 | 192 | 416 | 600 | 623 |
