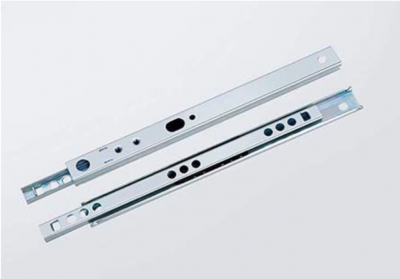

Ball Bearing Slide – SH1710A
- Specification: 3/4 extension
- Slide Width: 10mm
- Load Rating: 10kg per pair
- Material: galvanized steel, cold rolled steel
- Finish: electro-zinc plated with clear, yellow, or black chromate
- Application: shallow desk drawers, pencil drawers, pull-out trays, and bedroom/dining room/kitchen cabinets
- Feature: two-way travel
Product Specification
| Item No. | Length (mm) | L1 (mm) | L2 (mm) | A (mm) |
|---|---|---|---|---|
| SH1710A-182 | 182 | 182 | 182 | 64 |
| SH1710A-214 | 214 | 214 | 214 | 80 |
| SH1710A-246 | 246 | 246 | 246 | 96 |
| SH1710A-278 | 278 | 278 | 278 | 112 |
| SH1710A-310 | 310 | 310 | 310 | 128 |
| SH1710A-342 | 342 | 342 | 342 | 144 |
| SH1710A-374 | 374 | 374 | 374 | 160 |
| SH1710A-438 | 438 | 438 | 438 | 192 |
