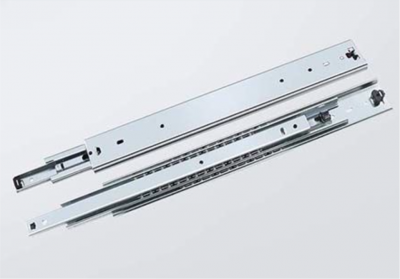

Ball Bearing Slide – SH5501
- Specification: heavy-duty, full-extension

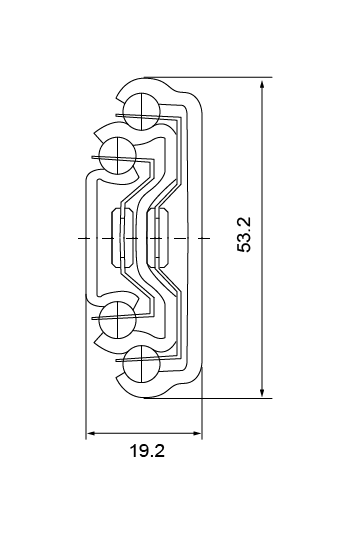

- Slide Width: 53.2mm
- Load Rating: 100kg per pair
- Material: work hardened cold rolled steel
- Finish: electro-zinc plated with clear, yellow, or black chromate
Product Specification
| Item No. | Length (mm) | L1 (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SH5501-350 | 355 | 380 | 186.15 | 229.85 | 255.25 | 280.65 | 25 | 216 | 355 | |
| SH5501-400 | 406 | 431 | 236.95 | 280.65 | 306.05 | 331.45 | 25 | 216 | 406 | |
| SH5501-450 | 457 | 482 | 190.5 | 287.75 | 331.45 | 356.85 | 382.25 | 38 | 267 | 457 |
| SH5501-500 | 508 | 533 | 215.9 | 338.55 | 382.25 | 407.65 | 433.05 | 38 | 267 | 508 |
| SH5501-550 | 559 | 584 | 241.3 | 389.35 | 433.05 | 458.45 | 483.85 | 51 | 317 | 559 |
| SH5501-600 | 610 | 635 | 266.7 | 440.15 | 483.85 | 509.25 | 534.65 | 51 | 317 | 610 |
| SH5501-650 | 661 | 686 | 292.1 | 490.95 | 534.65 | 560.05 | 585.45 | 64 | 394 | 661 |
| SH5501-700 | 712 | 737 | 317.5 | 541.75 | 636.35 | 610.85 | 636.25 | 64 | 394 | 712 |
| SH5501-750 | 763 | 768 | 342.9 | 592.55 | 687.05 | 661.65 | 687.05 | 77 | 470 | 763 |
| SH5501-800 | 814 | 839 | 368.3 | 643.35 | 64 | 712.45 | 737.85 | 77 | 470 | 814 |
