Project Description

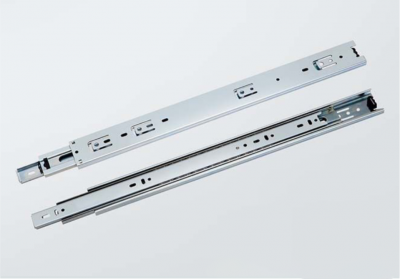

Ball Bearing Slide -RF4605F
- Specification: full-extension

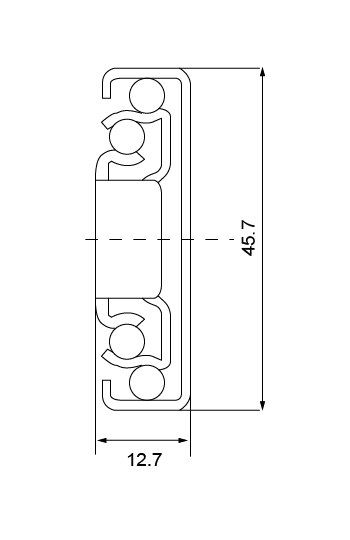

- Slide Width: 45.7mm
- Load Rating: 45kg per pair at 18″ slide length
- Material: work hardened cold rolled steel
- Finish: electro-zinc plated with clear, yellow, or black chromate
- Application: commercial and residential desk drawer, various institutional and contact applications where full-extension is required
- Features: low profile, drawer disconnect with trigger release, hold-in-detent and non-handed
Product Specification
| Item No. | Length (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| R4605F-250 | 250 | 86 | 64 | 250 | 238 | |||||
| R4605F-300 | 300 | 136 | 128 | 300 | 306 | |||||
| R4605F-350 | 350 | 160 | 128 | 350 | 370 | |||||
| R4605F-400 | 400 | 160 | 64 | 128 | 400 | 420 | ||||
| R4605F-450 | 450 | 160 | 128 | 128 | 192 | 450 | 469 | |||
| R4605F-500 | 500 | 160 | 128 | 64 | 128 | 64 | 160 | 500 | 519 | |
| R4605F-550 | 550 | 160 | 128 | 64 | 128 | 64 | 192 | 550 | 548 | |
| R4605F-600 | 600 | 160 | 128 | 64 | 64 | 128 | 64 | 224 | 600 | 621 |
