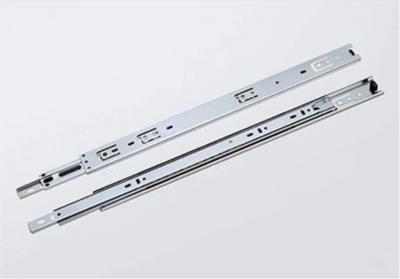

Ball Bearing Slide – SH3601
- Specification: full-extension light ball bearing slide

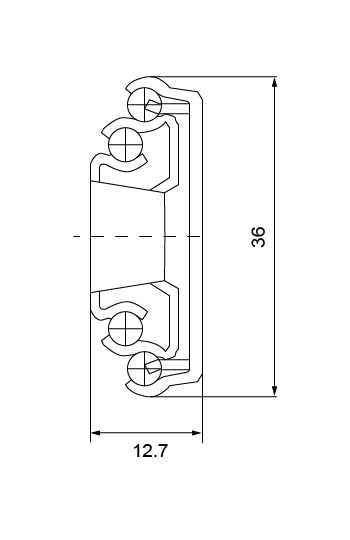

- Slide Width: 36mm
- Load Rating: 25kg per pair
- Material: work hardened cold rolled steel
- Finish: electro-zinc plated with clear, yellow, or black chromate
Product Specification
| Item No. | Length (mm) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | G (mm) | L (mm) | H (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| SH3601-250 | 250 | 150 | 64 | 250 | 254 | |||||
| SH3601-300 | 300 | 200 | 128 | 300 | 304 | |||||
| SH3601-350 | 350 | 224 | 128 | 350 | 354 | |||||
| SH3601-400 | 400 | 224 | 288 | 128 | 400 | 404 | ||||
| SH3601-450 | 450 | 224 | 352 | 128 | 320 | 450 | 454 | |||
| SH3601-500 | 500 | 224 | 352 | 416 | 128 | 192 | 352 | 500 | 504 | |
| SH3601-550 | 550 | 224 | 352 | 416 | 128 | 192 | 384 | 550 | 554 | |
| SH3601-600 | 600 | 224 | 352 | 416 | 480 | 128 | 192 | 416 | 600 | 604 |
